Crest Audio X-Rack XR20
Range of rack-mount mixers
X-Rack Series rack mount mixers address a wide range of applications, including project studios, houses of worship, broadcasting, and all facets of live sound reinforcement.
Crest Audio´s console engineering group has drawn from decades of large and medium-format console design to create a compact, feature-filled rack mount mixer that meets of exceeds what all other rack mount mixers offer in terms of quality, reliability and flexibility, regardless of price. AES-suggested grounding procedures are followed, resulting in excellent rejection of RF interference and ground-related noise. X-Rack mixers exhibit less than +/- 30 degress of input to output phase shift, which is significantly better than most other consoles. XLR connectors are used on all primary inputs and outputs, while 1/4" TRS connectors are used for inserts, making it easy to interface with most professional audio gear.
XR20
- 12 Mono inputs + 4 Stereo inputs (20 inputs total), all with mic preamps and individual 48 Volt Phantom Power Switches
- 100mm faders on all inputs and Left, Right, and Mono (center) Outputs. 60mm faders on the 4 subgroups.
- Four band EQ on all inputs
- 18dB per octave high pass filters on mono input channels
- Insert on all inputs, subgroups, aux outs and L, R, & M outputs
- 6 Aux buses, selectable pre or post fader in pairs
- Aux´s 1 and 2 can be configured as Level/pan for stereo operation
- XLR L, R & Mono outputs switchable between Line and Mic level
- Internal universal line voltage power supply
- 1/4" TRS and RCA connectors provided on Alt Output, Monitor Output and Tape Input
Documents

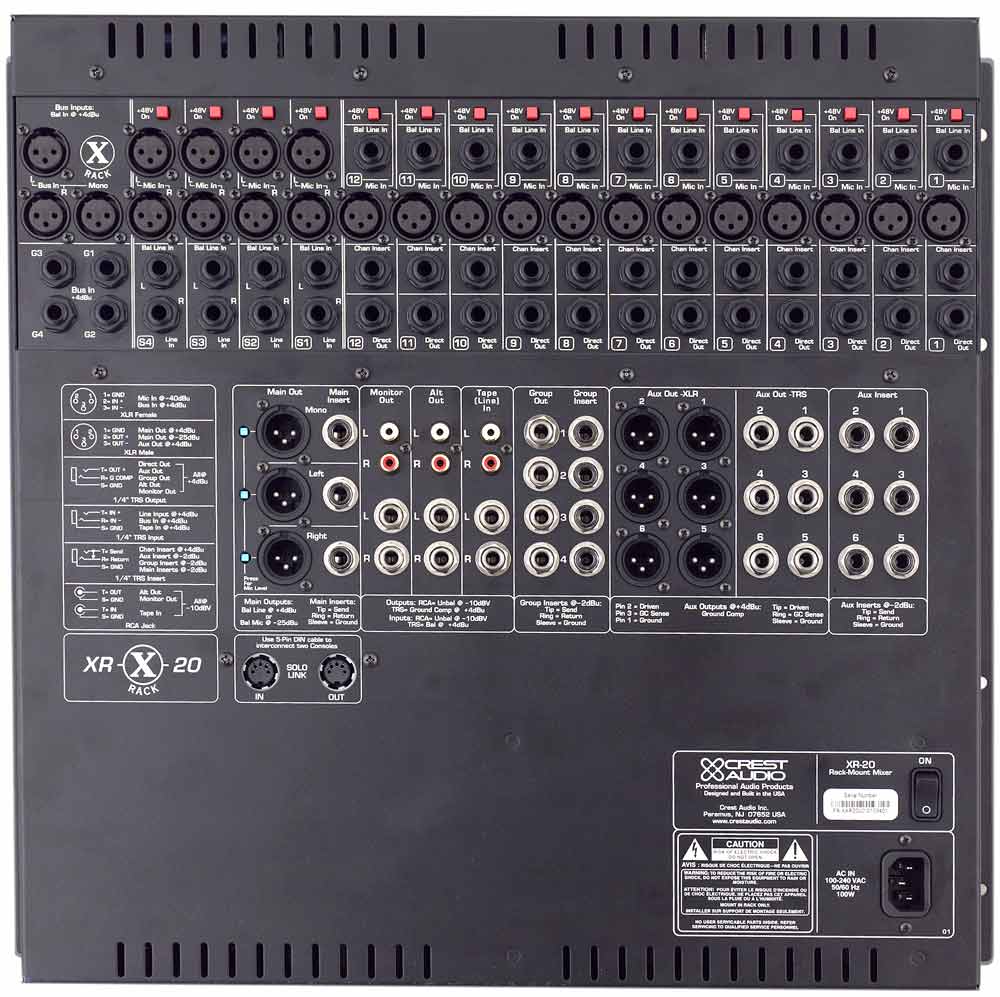

XR20 Rear View
Click on thumbnail to enlarge
[99kb JPEG]
