250 Wash XT  (2002?)
Robe

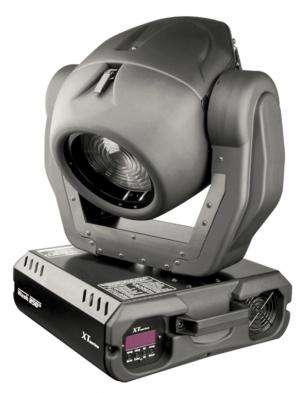

Robe 250 Wash XT

Technical Specification
Source

• Lamp: Compact high-pressure metal halide lamp
• Base: GY-9.5
• Approved model: Philips MSD 250W/2
• Control: Automatic and remote on/off
• Ballast: Magnetic

• Fresnel lens of diameter 150mm
• Manually adjustable beam angle from 8° to 22°

• Wiring options - EU-model: 208/230/240V AC, 50/60Hz
• Wiring options - US-model: 100/120/208/230/240V AC, 50/60Hz
• Power consumption: 500 VA at 230V/50Hz

• Height: 500 mm (19.7") - head in horizontal position
• Width: 428 mm (16.9")
• Depth: 379 mm (14.9")
• Weight - EU model: 18.0 kg (39.7"), US model: 21.0 kg (46.3")

• Maximum ambient temperature (Ta): 45°C (113°F)
• Maximum surface temperature: 80°C (176°F)

• Protocol: USITT DMX-512
• Control channels: 16
• Built-in demo sequences
• Display: 4-digit LED display
• Pan/Tilt resolution: 8- or 16-bit
• Master/slave operating
• Controllable speed of fans
• Movement control: Tracking and vector
• Buit-in analyzer for easy fault finding
• Data in/out: Locking 3-pin XLR

• Colour wheel: 3 dichroic filters, 3200K and 5600K correction filters, UV filter + open
• CMY mixing systém - Cyan: 0 - 100%, Magenta: 0-100%, Yellow: 0-100%
• Effect wheel: beam shaper, frost filter
• Dimmer/Shutter: Full range dimming and variable strobe effect
• Pan: 530°
• Tilt: 280°
• Maximum Pan-movement 530° in 2.65s
• Maximum Tilt-movement 280° in 1.68s

• via 2 pairs of mounting holes for clamps with M10 thread
• via mounting bracket

• Mounting bracket with screws
