Rosco 4500 Fog Machine (1988)
Rosco

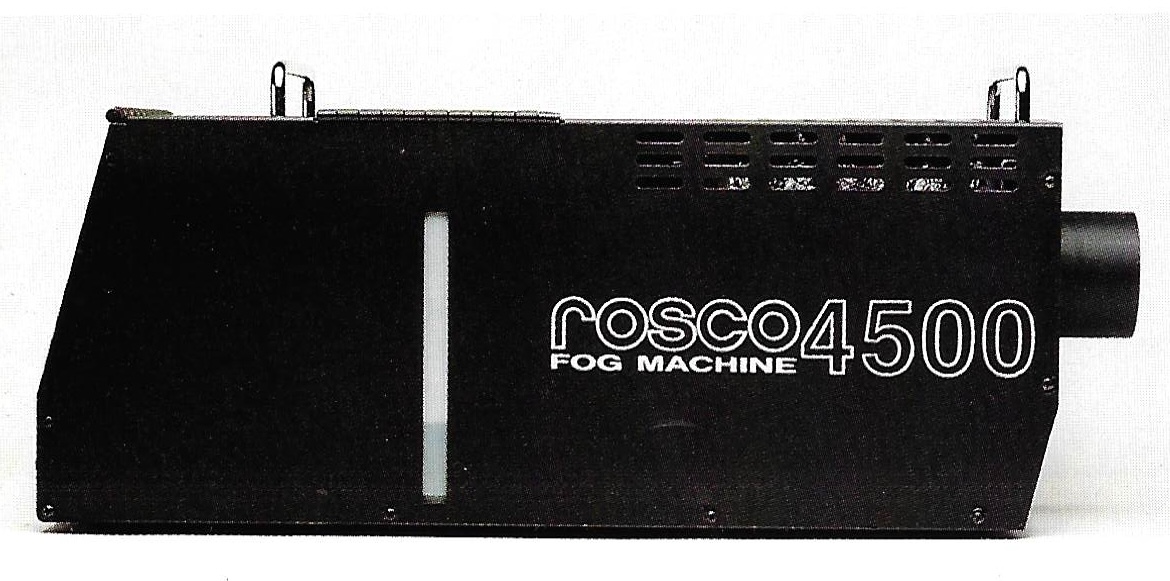

Rosco 4500 Fog Machine
High output fog generator
From 2001 website:
Rosco's Model 4500 Fog Machine was developed for situations where a high volume of dense fog is required. The machine has an incredible output unequaled by any other fog machines. The Model 4500 utilizes most of the quality components which have proven so reliable in other Rosco fog machines. The high volume of fog is generated by combining three heat exchangers fed by a powerful peristaltic pump. The speed of the pump is controlled electronically, thus controlling the volume of the fog.
The Model 4500 features an internal 1.5 liter tank for fluid. The fluid level in the internal tank can be monitored from outside the machine. Users who prefer to supply fluid from larger external containers, for continuous operation, can do so easily with a simple hose connection. The 4500 has an extensive array of controls and indicator lights on the back of the machine, secured under metal cover. There is a remote control included as standard equipment with the machine which permits operation from as far away as 100 feet (30 m). Also available is an optional Super Remote that includes a programmable sequencer as well as a DMX Interface. The machine is available in both 120 volt and 240 volt models.
The Model 4500, like all Rosco fog products, uses Rosco fog fluids exclusively. Rosco Fog Fluid is a unique chemical formulation honored by the Academy of Motion Picture Arts & Sciences with an Academy Award.
Power requirements: 120 volts, 50/60 Hz, 20 Amps. 240 volts, 50/60 Hz, 12.5 Amps.
Dimensions: 24.5" x 9.0" x 9.25".
Weight: 40 lbs.
Warm-up time: Approximately ten minutes.
Maximum fluid consumption: 5.25 liters per hour.
Particle size: 0.25 - 60 microns.
#14500 0120 Model 4500 120v/20 amp
#14500 0240 Model 4500 240v/12.5 amp
#44500 0000 Model 4500 Carrying Case
#64590 0006 6" Hose Adapter
#64595 0006 Ducting Hose 6" x 25'
#51585 0050 50' Remote Extension
#51586 0100 100' Remote Extension
#51680 0000 DMX Interface
#51650 0000 Super Remote
