Ultraviolet light (also known as black light) is short wavelength light energy just off the end of the visible light electromagnetic spectrum which causes specially treated materials to fluoresce on an otherwise blackened stage. The materials degrade the UV wavelengths into longer and therefore visible reflected rays. Used for special effect and for lighting onstage technical areas (eg Fly Floors).
Ultraviolet sources designed for stage use are known as Black Light sources (also known as UV-B) and have all harmful radiations filtered out.
Originally, Ultraviolet light (known as Woods Light) was produced using a discharge lamp inside an envelope of intensely pigmented glass known as Wood’s Glass. It was invented in 1903 by American physicist Robert Williams Wood (1868-1955) and allows ultraviolet and infrared light to pass through it while blocking most visible light. It was developed as a filter to use for communications during World War I.
Until around 1936, UV light was only created as a by-product of using arc lights. Around that time (1936 catalogue and article ‘Black Light’ from TABS in 1938), the mercury lamp was produced which created a reliable and safe source of black light.
In 1936, the Strand Electric catalogue stated that the Ultra-Violet lighting effect was ‘much developed by the late Mr Julian Wylie, in conjunction with Strand Electric’ on pantomimes in London. Wylie passed away in 1934.
Producing UV light
UV light for stage use can be produced in any of the following ways:

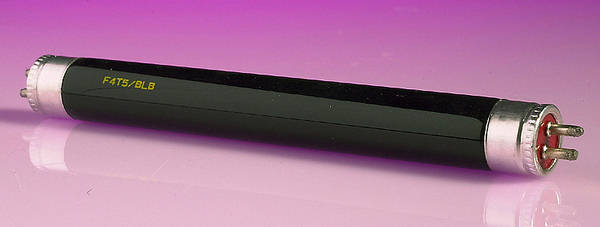

- Fluorescent Tube

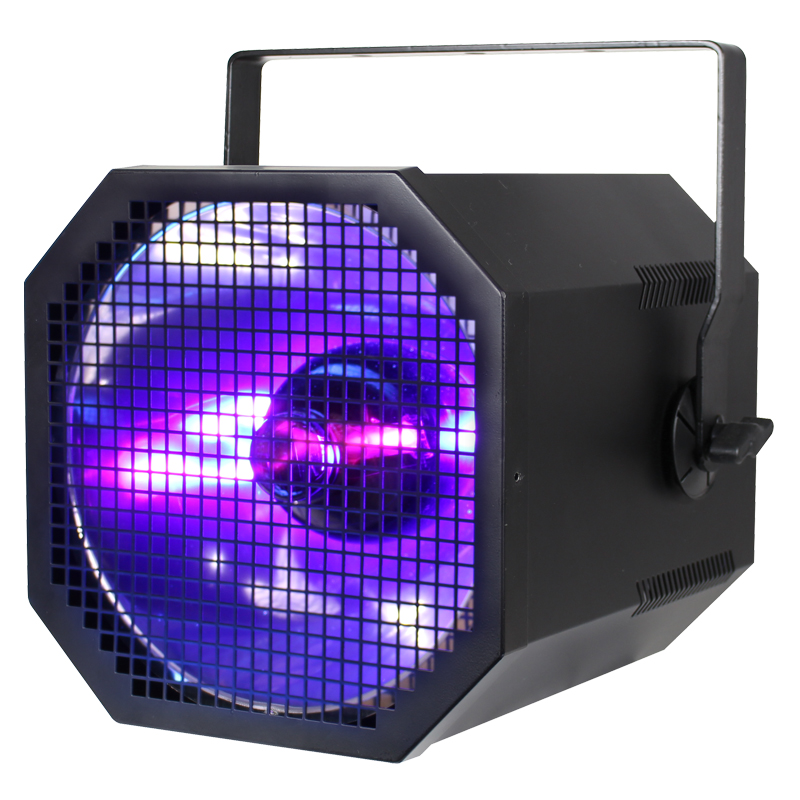

- UV Cannon (e.g. Equinox UV Cannon by Prolight Concepts)
- LED-based instrument (e.g. UV 100W COB Flood by Prolight Concepts)
- Some moving lights can also produce UV light, due to the discharge lamp being used.
Archive
Any undated equipment is listed first with a grey background. If you can help us by adding dates please Contact Us!
Equinox
Altman Stage Lighting Co.
Altman Stage Lighting Co.
Strand
This archive is still under construction, so please bear with us while we add more items. If you have specific information or documents that we don't have, and would be willing to share, please contact us!
How to make objects and costumes glow under UV light
Some materials contain phosphors which emit visible light in response to radiation. Phosphors subjected to UV light fluoresce as they become excited by the radiation.
Clothing that’s natural (non-synthetic) and that’s washed in a detergent containing ‘optical brightener’ (that makes white clothes appear bright) will probably glow under UV light.
Some clothing or paints that contain phosphors will also glow.
Practitioners:
- Black Light is used extensively in the Czech Republic where stunning effects are achieved on stages lined with black velvet.
The below video shows examples from the Black Light Theatre of Jiri Srnec (more information on their website www.srnectheatre.com)
Wildfire
- Wildfire in Los Angeles produce a range of high intensity fluorescent paints which they use on stunning transformation scenes. Below are two sculptures seen under visible light, then under UV light.
