Profile Spot
350W MARC lamp (Later changed to 250W HTI)
Pan
Tilt
2 colour wheels working as a matched pair
2 gobo images and 5 'sizing' apertures

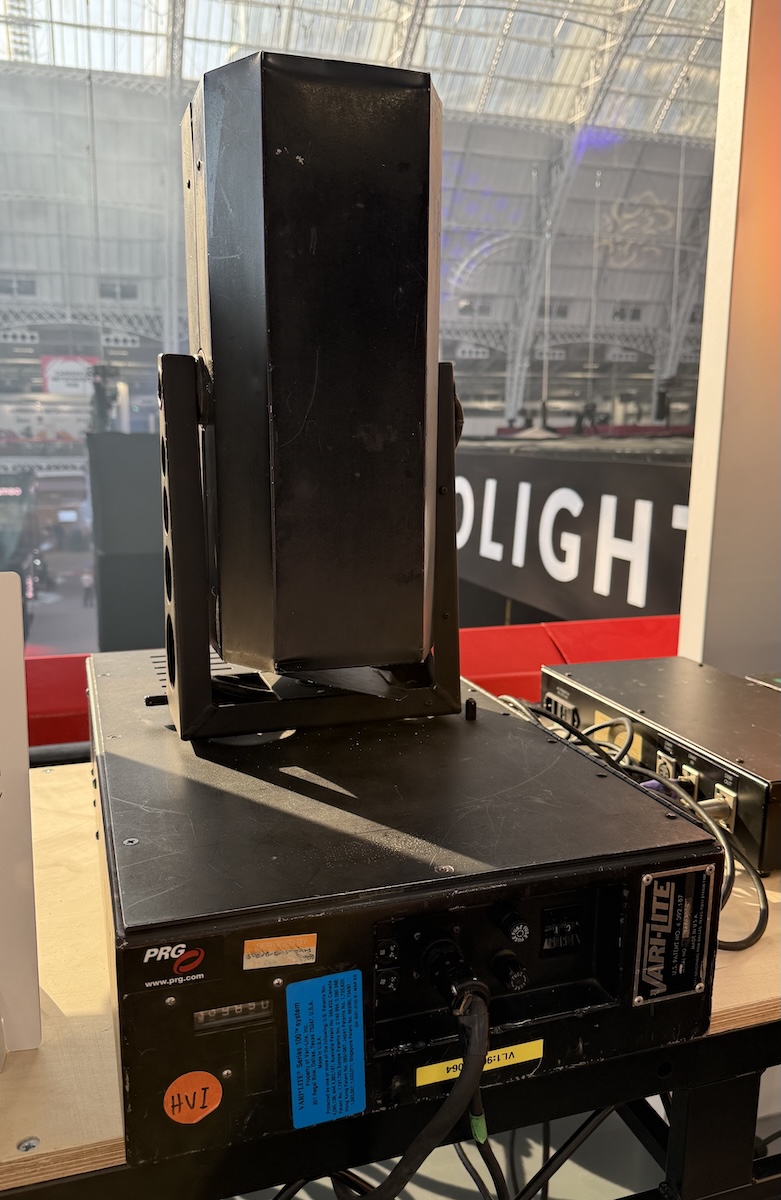

One of the world's first automated luminaires, the VL1 was first used in 1981 with Genesis in Spain. It ran with Series 100 control system and it could store cues in its head. There were 6 builds of VL1 units. Many changes during its lifetime were introduced including the 'anti-chatter' board to stop motor noise when static as well as the change away from the short life MARC 350.
The fixture was last used on the Blues Brothers tour in the mid 1990's and only a handful of these first units are left.

Information from Rob Halliday:
There had been moving lights before – big theatrical fixtures bolted into huge, slow-moving yokes – but this is really where the modern age of moving lights began: the Vari*Lite VL1. Amusingly, it was created by Showco, then best known as a sound company!

A more experimental version – now dubbed the VL0 – had been shown to the band Genesis. They expected it just to change colour. They were startled and amazed when it moved. So amazed, they became both investors in the company and early adopters, forty-four fixtures (plus eleven spares) – not quite the final VL1 – making their debut on the band’s 1981 Abacab tour in Barcelona just nine months after that first showing.

By modern standards the VL1’s brightness and feature set were limited: a gobo wheel then three more wheels each containing seven dichroic colours to give 60 useable colours. Abacab ran on a one-off custom controller; the Vari-Lite Series 100 console came later.

The VL1 evolved through six generations before being replaced by the next generation of Vari*Lites - but not before being a key part of the biggest gigs of the day, including a little event from forty years ago called Live Aid…
