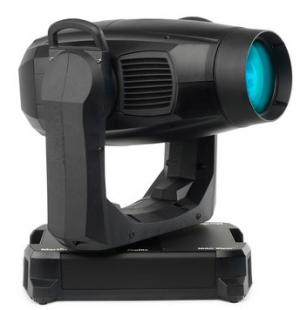

MAC Viper Family  (2012)
Martin

MAC Viper Performance

The MAC Viper Profile is a new breed of high-output profile luminaire with an exceptional feature set, superior light quality and a highly efficient optical system. It outperforms all market-leading profiles in the 1200-watt range and is even an alternative to 1500-watt fixtures. The Viper Profile is not only brighter, it is also a faster and more compact solution. With its 1000-watt HID source, the Viper consumes less power, making it over 50% more efficient than its 1200-watt rivals.

Physical
Length (Head): 566 mm
Width: 472 mm
Width (Base): 335 mm
Height (head straight up): 731 mm
Height (maximum): 748 mm
Weight: 37.2 kg

Lamp
Type: 1000 W short-arc discharge
Color temperature: 6000 K
CRI (Color rendering index): >85
Average lifetime: 750 hours
Socket: PGJX36
Ballast: Electronic Approved lamps: Osram HTI 1000/PS Lok-it, Philips MSR Gold MiniFastFit 1000W

Dynamic Effects
Color mixing: CMY, independently variable 0 - 100%
Color temperature control: CTO, variable 6000 - 3200 K
Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color
Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake
Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake
FX wheel: Interchangeable static gobo and gobo animation effects
Zoom: 10° - 44°
Zoom-focus linking system: 3-zone
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Prism: Interchangeable 4-facet rotating prism
Iris: 0 - 100%, pulse effects
Frost: Frost filter
Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout
Dimming options: Choice of four dimming curves
Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.)

Control and Programming
DMX channels: 26/34
Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Receiver: Opto-isolated RS-485
Firmware update: USB memory device or USB/DMX hardware interface over DMX link
